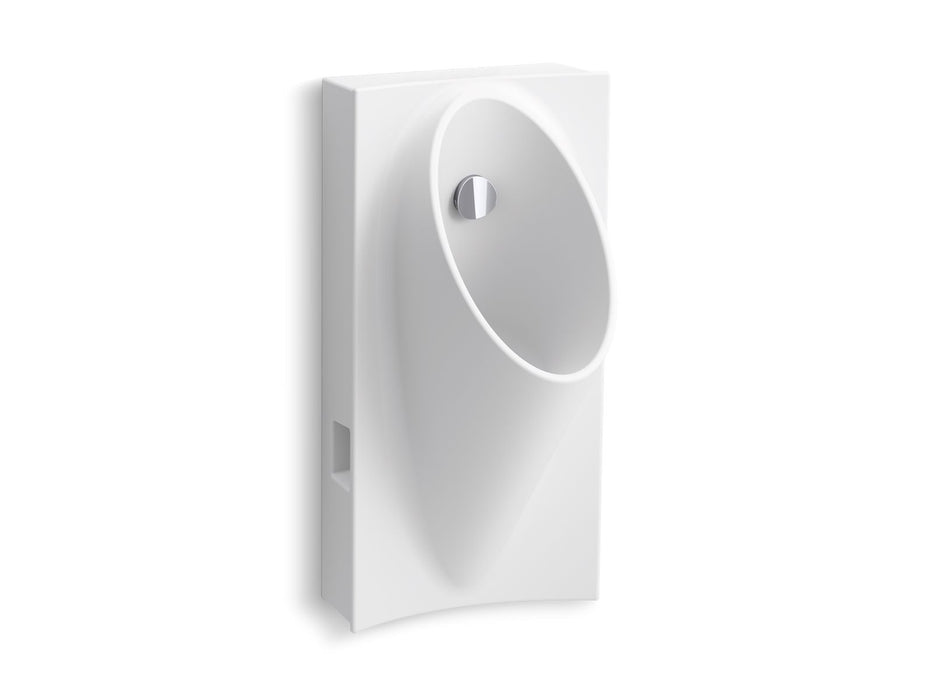

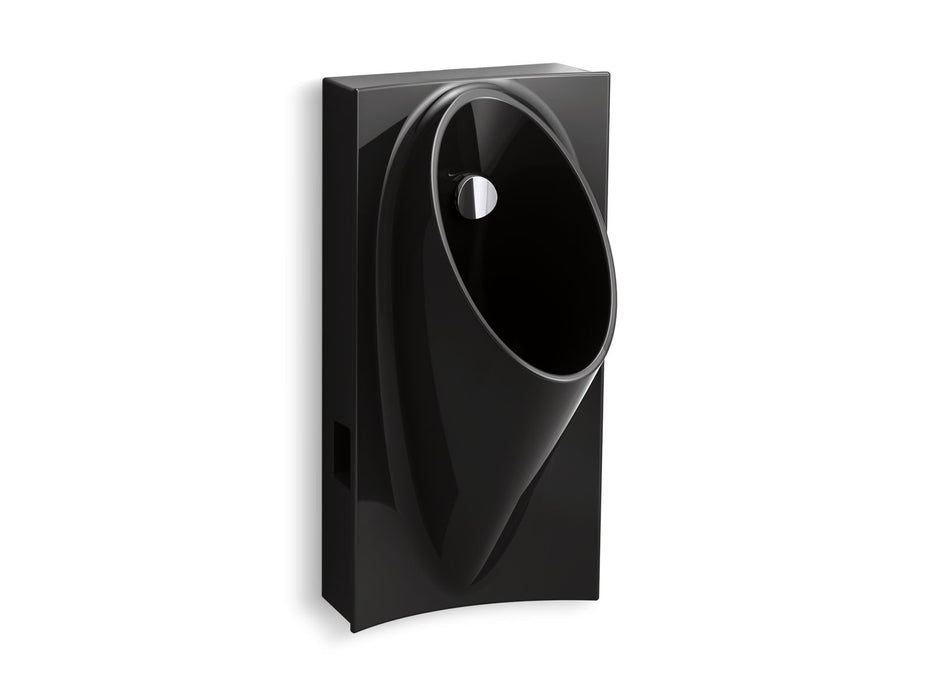

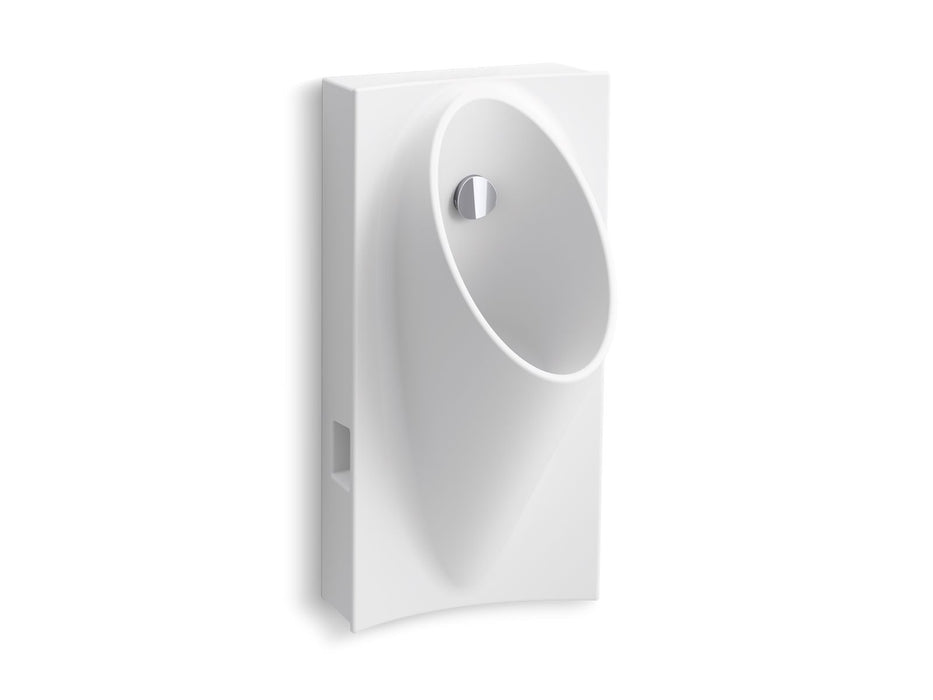

KOHLER K-5244-ER Steward Washout half-stall 0.125 gpf urinal, rear spud

Modeled after the popular Steward waterless urinals, this Steward Hybrid urinal combines a sleek design aesthetic with a rinsing flush that prevents drainline issues and reduces maintenance. At 0.125 gpf, this high-efficiency urinal offers 80% water savings compared to standard 1.0-gpf urinals. The large footprint covers the old urinal wall print, making this model ideal for water conservation replacement projects.

• Revolutionary funnel design virtually eliminates splashback
• KOHLER-engineered water flushing spreader successfully rinses the inverted back wall, sides, and front of the urinal basin for a more sanitary customer experience
• Ultra-low consumption. Operates at 0.125 gpf (0.47 lpf)
• 1/2" (12.7 mm) flexible rear supply hose
• Includes removable strainer, 2" outlet spud, universal mounting bracket, and hangers
• This product can help a building earn Water Efficiency points in LEED Green Building Rating System
• Overall dimensions: 15-5/8" L x 15" W x 29-5/8" H
• Overall depth: 15-5/8"
• Material: Vitreous China
• Installation: Wall-mount
• WaterSense certified
• ADA compliant
• Suitable for commercial use
• KOHLER® One-Year Limited Warranty
