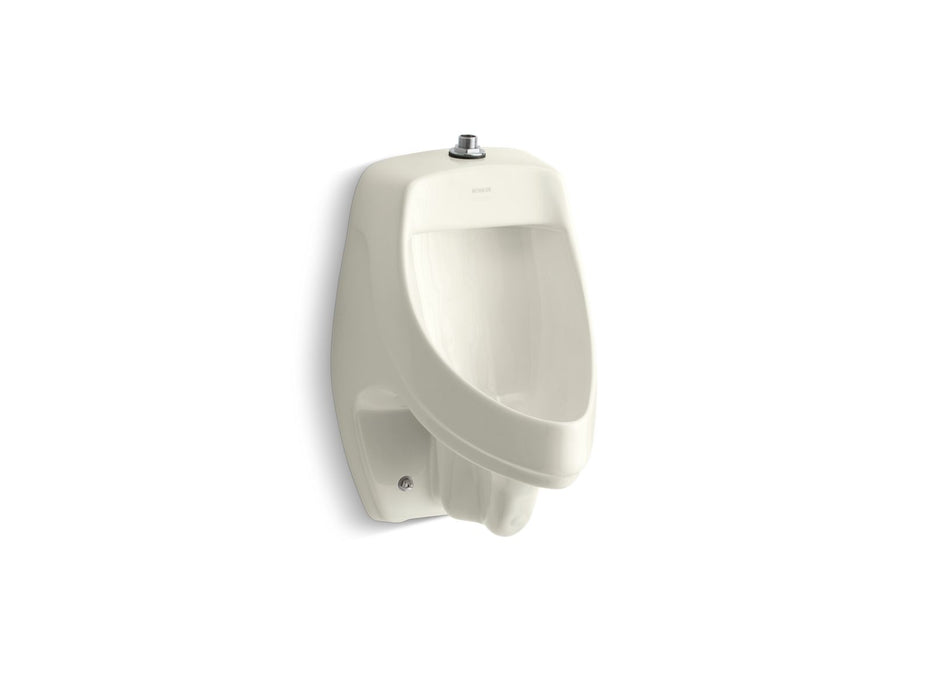

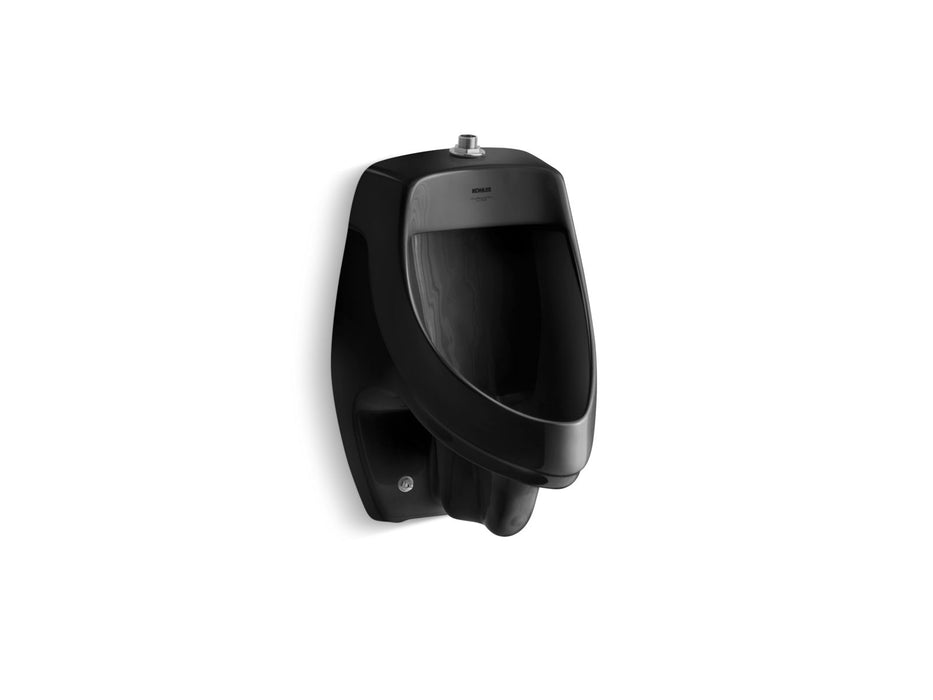

KOHLER K-5016-ET Dexter Siphon-jet wall-mount 0.5 or 1.0 gpf urinal with top spud
The straightforward design of the Dexter elongated urinal brings KOHLER styling and functionality to any application. The compact size is ideal for smaller public restrooms, and the back-wall geometry limits splashback for a cleaner user experience. This model features a 3/4" top spud.
- Siphon jet
- 3/4" (19 mm) top spud
- 0.5 or 1.0 gpf (1.9 or 3.8 lpf) based on valve selected
- Siphon jet
- Includes inlet and outlet spuds and hangers
- Includes anti-backsplash wall
- 14-1/2" (368 mm) extended rim
- 0.5 or 1.0 gpf (1.9 or 3.8 lpf)
- Product weight: 37 lb
- Material: Vitreous China
- Installation: Wall-mount
- WaterSense certified
- ADA compliant
- Suitable for commercial use
- KOHLER® One-Year Limited Warranty
Additional Resources
CAD & BIM Files
Revit (BIM) · 3D DWG · 3D DXF · SketchUp · 2D DWG - Front · 2D DWG - Plan · 2D DWG - Side · 2D DXF - Front · 2D DXF - Plan · 2D DXF - Side
